Bulkhead wall light 20W Aluminium housing half covered IP65 outdoor LED ceiling light PF>0.95
Descritpion : LED bulkhead light is designed with IP65 rated LED outdoor wall luminaries
providing lighting solutions both indoor and outdoor for gardens ,pool area .villas ,bathroom.etc
the bulkhead light is designed the shine through mist ,fog and other wet weather conditions
making led bulkhead light an ideal solutions for outdoor applicaitons .
Bulkhead wall light specification
| Model | SP-MLGR20W-A |
| Input Voltage | AC100-277VAC 50/60Hz |
| Dimension | 300*300*90mm |
| Lighting Source | Epistar/Cree/Samsung |
| Power Consumption | 20W |
| Color Temperature | WW(2800~3000K) | NW(4000~4500K) | CW(6000~6500K) |
| Luminosity | ≥1500 | ≥1550lm | >1600lm |
| CRI(Ra) | >80 |
| Material | Die Cast Aluminium housing |
| Work Temperature | -25℃～+45℃ |
| Cover Material | PC |
| GW | 1.2KG |
| NW | 1.0KG |
| IK rate | IK09 |
| Lifespan (LED) | ≥50,000hrs (950% Lumen Maintenance) |
| IP Rating | IP65 |
| Lumen Attenuation | <5% @ 5,000hrs |
| Power Factor | >0.95 |
Product Features :
1. die cast alumium body , impact resistance ,IK10 rate .
2, Milky PC cover provided make sure the lights with smooth light ouput .
3. IP65 rating , rubber ring connect the alumium base and PC cover tightly .
4. Powder painting and oil painting are both aviable for the products .
5. warm white , netural white ,cool white are both aviable
7. to work easily . the MOQ is only 1 pcs only .
8. payment terms : Paypal .T/T western union L/C
9. 10w ,15w ,20W ,30W are provided
10. fast delivery , one week to 10 working days
Product drawing :

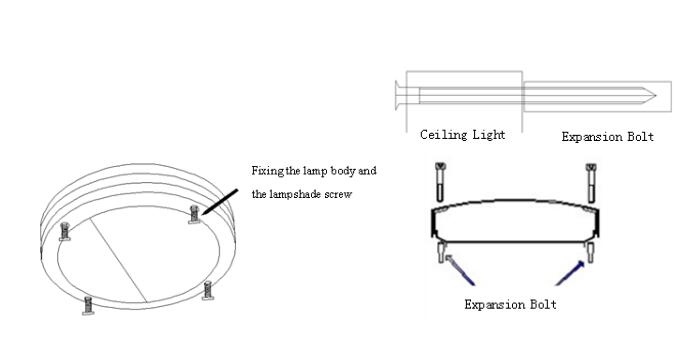

Installation instructions :
1,Take 4pcs 5*40mm screw to fix the lamp to the wall, take 4pcs 5*40mm screw to fix the lamp base and lamp cover.
.2,Installation methods : with the tapping screws installed two holes of base to specified location( two holes are on the diagonal of base ).
3,when fix the lamp body, drill a hole with 6mm-7mm on the wall, hammer into the expansion bolt. Screw through the screw hole of lamp body , screw in the expansion bolt . installation over . see the picture :
Light distribute Curve :
Factory Tour :
Applications :
